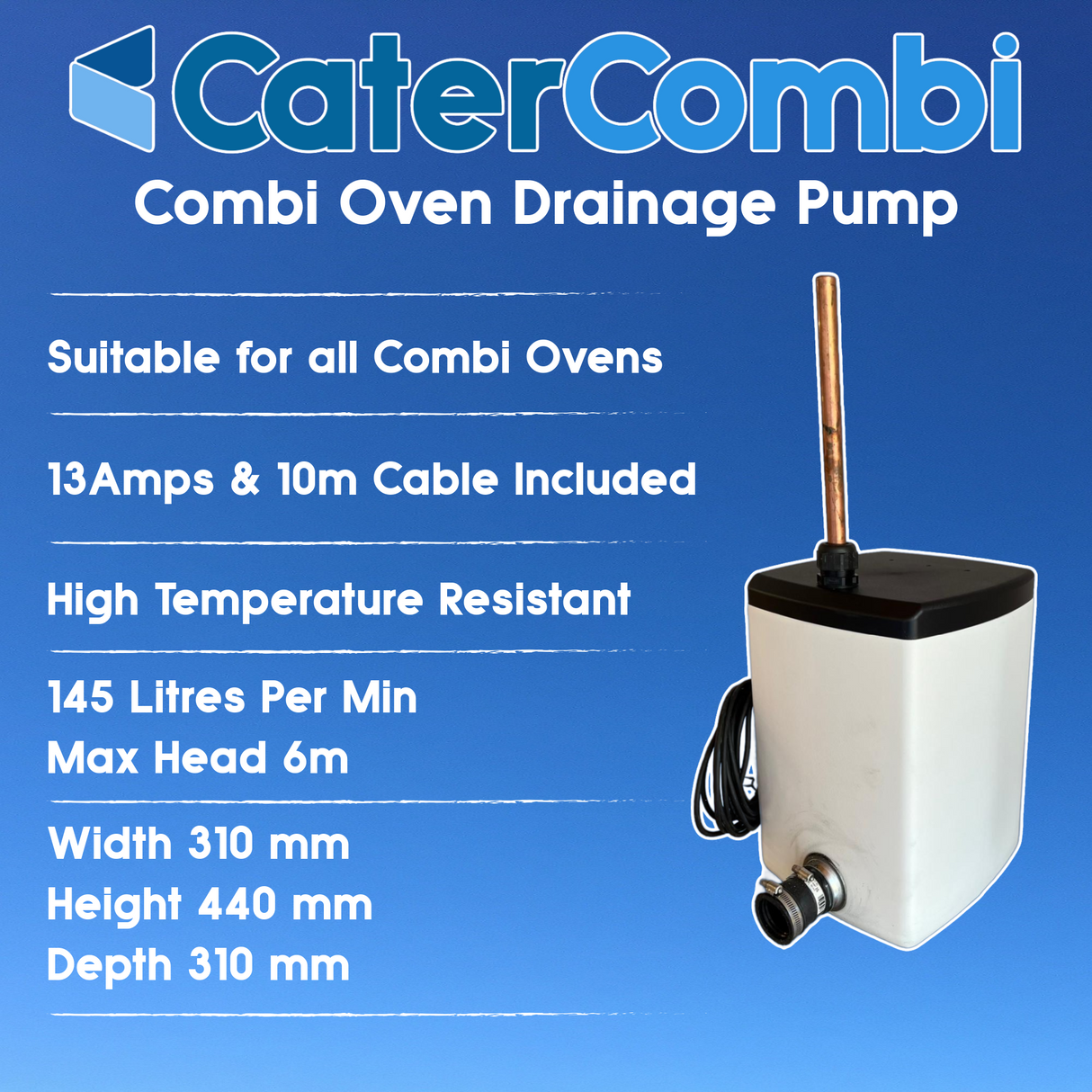

Combi Oven Waste Drain Pump
About this oven
The CaterCombi waste drain pump is designed to work with 6, 10 or 20 grid combi oven installations where the waste needs to be pumped away. This is typically either because the waste outlet in the kitchen is higher than the waste outlet of the oven, or if the kitchen waste is located far away from the combi's location.
The pump works with any waste connection from just 40mm off the ground, is able to pump up to 9 metres and has a maximum capacity of 160 litres per minute. It can withstand water temperature up to 98 degrees.
It is highly recommended that this system is installed by a fully qualified plumber or catering engineer. Please call us on 01227469692 for a quotation for installation.
Installation:
Download the Installation Sheet

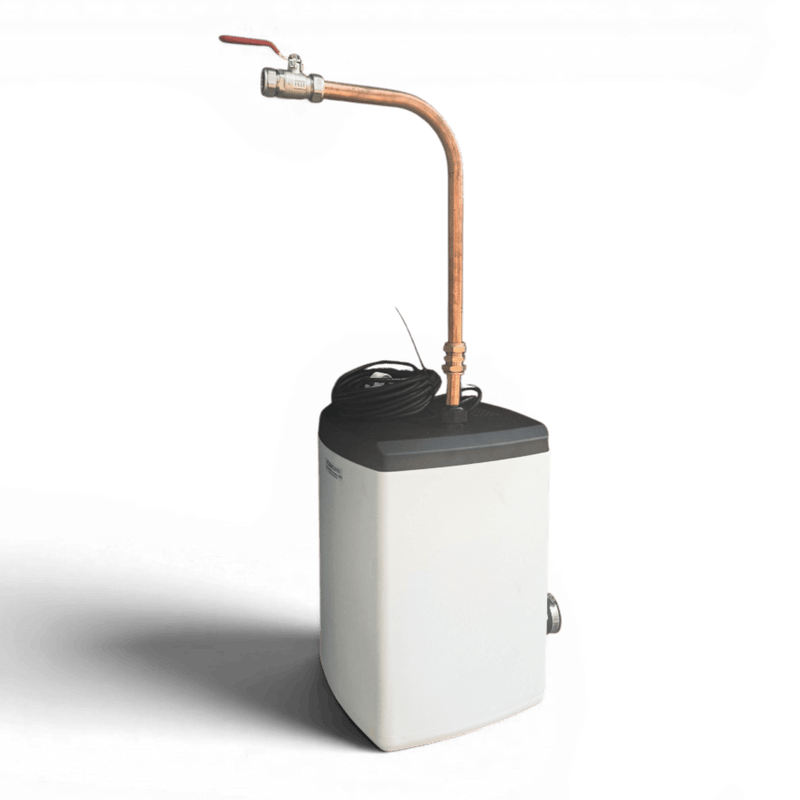

An inlet hole will need to be drilled into the holding tank at the height required. This hole must be made on the opposite side of tank to where the pump is housed. You will then require 22mm copper to attach to the gland supplied and take the water away from the pump system. At the end of the copper run there MUST be an airgap to prevent any chance of overflow back into the system (we can supply a tundish suitable for this purpose, available here).
Delivery:
We are able to ship this item to you for £25 via Courier. If purchased with a combi oven, it will be sent on the pallet with the machine, so delivery is free of charge.
Please contact us if you have questions - 01227 469692
Features & capabilities
Full feature breakdown for this model.
⚠️ No features assigned. Go to Shopify Admin → Products → [this product] → Metafields → Product Features and select the matching entry.
Tech Specs
Full technical specification pulled directly from product metafields.
| Product | |
| Type | Drain Pump |
| SKU | CCDrainPump |
| Condition | Professionally refurbished |
| Power & Electrical | |
| Power Supply | 12 Amps |
| Dimensions | |
| Dimensions (W×D×H) | W 310mm x H 440mm x D 310mm |
| Warranty | |
| Warranty | 6 months Warranty |
| Extended Warranty | Available on request — call 01227 469692 |
Delivery, collection & warranty
Everything you need to know before your oven arrives.
What every oven goes through before sale
- 57-point planned preventative maintenance (PPM) schedule by our qualified catering engineers
- Full service checklist provided — list of all parts changed available to keep
- Oven can be viewed working via video call or in-person at our Canterbury warehouse
- 6 months Warranty included as standard
- Extended warranties available — call 01227 469692 for details
- Warranty valid only when installed by a fully qualified catering engineer per manufacturer guidelines
-
